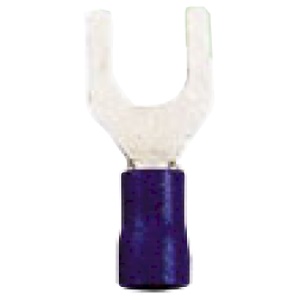

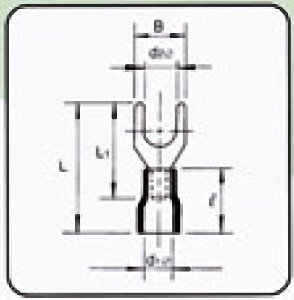

หางปลาหัวแฉก แบบย้ำ-หุ้ม
INSULATED SPADE TERMINALS
YF TYPE
| Item No. |
d2Ø |
B |
L |
L1 |
I |
d1Ø |
Color |
AWG |
DIN mm2 |
QTY in box |
| YF 1.5-3S |
3.7 |
5.7 |
21.0 |
16.0 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| YF 1.5-3 |
3.7 |
6.2 |
21.0 |
16.0 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| YF 1.5-4S |
4.3 |
6.4 |
21.0 |
16.0 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| YF 1.5-4 |
4.3 |
7.2 |
21.0 |
16.0 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| YF 1.5-5S |
5.3 |
7.2 |
21.0 |
16.0 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| YF 2.5-3S |
3.7 |
5.7 |
21.0 |
16.0 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| YF 2.5-3 |
3.7 |
6.2 |
21.0 |
16.0 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| YF 2.5-4S |
4.3 |
6.4 |
21.0 |
16.0 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| YF 2.5-4 |
4.3 |
7.2 |
21.0 |
16.0 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| YF 2.5-5S |
5.3 |
8.2 |
21.0 |
16.0 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| YF 4-4 |
4.3 |
8.0 |
25.8 |
18.3 |
13.5 |
3.0 |
Black |
14-12 |
2.5-4 |
400 |
| YF 4-5 |
5.3 |
8.0 |
25.8 |
18.3 |
13.5 |
3.0 |
Black |
14-12 |
2.5-4 |
400 |
| YF 6-4S |
4.3 |
7.2 |
27.0 |
19.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| YF 6-4 |
4.3 |
8.2 |
27.0 |
19.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| YF 6-5S |
5.3 |
8.2 |
27.0 |
19.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| YF 6-5 |
5.3 |
9.0 |
27.0 |
19.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| YF 6-6 |
6.4 |
12.0 |
31.5 |
24.0 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |

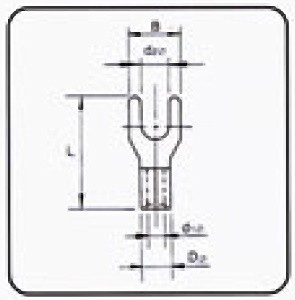

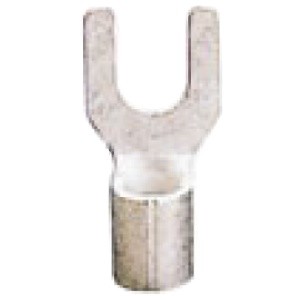

หางปลาหัวแฉก แบบย้ำ-เปลือย
NON-INSULATED SPADE TERMINALS
Y TYPE
| Item No. |
d2Ø |
B |
L |
DØ |
d1Ø |
AWG |
DIN mm2 |
QTY in box |
| Y 1.5-3S |
3.7 |
5.7 |
16.0 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| Y 1.5-3 |
3.7 |
6.2 |
16.0 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| Y 1.5-4S |
4.3 |
6.4 |
16.0 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| Y 1.5-4 |
4.3 |
7.2 |
16.0 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| Y 1.5-5S |
5.3 |
7.2 |
16.0 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| Y 2.5-3S |
3.7 |
5.7 |
16.0 |
4.0 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| Y 2.5-3 |
3.7 |
6.2 |
16.0 |
4.0 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| Y 2.5-4S |
4.3 |
6.4 |
16.0 |
4.0 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| Y 2.5-4 |
4.3 |
7.2 |
16.0 |
4.0 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| Y 2.5-5S |
5.3 |
8.2 |
16.0 |
4.0 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| Y 4-4 |
4.3 |
8.0 |
18.3 |
5.0 |
3.0 |
14-12 |
2.5-4 |
1,000 |
| Y 4-5 |
5.3 |
8.0 |
18.3 |
5.0 |
3.0 |
14-12 |
2.5-4 |
1,000 |
| Y 6-4S |
4.3 |
7.2 |
18.5 |
5.5 |
3.4 |
12-10 |
4-6 |
800 |
| Y 6-4 |
4.3 |
8.2 |
18.5 |
5.5 |
3.4 |
12-10 |
4-6 |
800 |
| Y 6-5S |
5.3 |
8.2 |
18.5 |
5.5 |
3.4 |
12-10 |
4-6 |
800 |
| Y 6-5 |
5.3 |
9.0 |
18.5 |
5.5 |
3.4 |
12-10 |
4-6 |
800 |
| Y 6-6 |
6.4 |
12.0 |
24.0 |
5.5 |
3.4 |
12-10 |
4-6 |
500 |

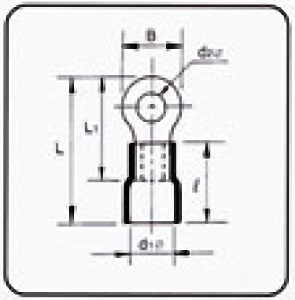

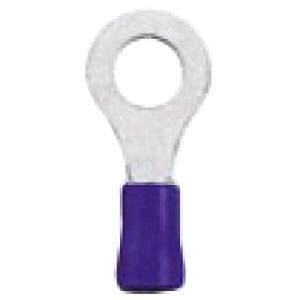

หางปลาหัวกลม แบบย้ำ-หุ้ม
INSULATED RING TERMINALS
RF TYPE
| Item No. |
d2Ø |
B |
L |
L1 |
I |
d1Ø |
Color |
AWG |
DIN mm2 |
QTY in box |
| RF 1.5-3 |
3.7 |
8.0 |
20.5 |
15.5 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| RF 1.5-4 |
4.3 |
8.0 |
20.5 |
15.5 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
1,000 |
| RF 1.5-5 |
5.3 |
8.0 |
20.5 |
15.5 |
9.5 |
1.7 |
Red |
22-16 |
0.5-1.5 |
800 |
| RF 2.5-3 |
3.7 |
8.5 |
21.5 |
16.5 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| RF 2.5-4 |
4.3 |
8.5 |
21.5 |
16.5 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| RF 2.5-5 |
5.3 |
9.5 |
22.0 |
17.0 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| RF 2.5-6 |
6.4 |
12.0 |
26.5 |
21.5 |
9.5 |
2.3 |
Blue |
16-14 |
1.5-2.5 |
500 |
| RF 4-4 |
4.3 |
8.8 |
25.2 |
17.7 |
13.5 |
3.0 |
Black |
14-12 |
2.5-4 |
400 |
| RF 4-5 |
5.3 |
8.8 |
25.2 |
17.7 |
13.5 |
3.0 |
Black |
14-12 |
2.5-4 |
400 |
| RF 4-6 |
6.4 |
12.0 |
28.9 |
21.4 |
13.5 |
3.0 |
Black |
14-12 |
2.5-4 |
300 |
| RF 6-4 |
4.3 |
9.5 |
27.0 |
19.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| RF 6-5 |
5.3 |
9.5 |
27.0 |
19.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| RF 6-6 |
6.4 |
12.0 |
30.5 |
23.0 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| RF 6-8 |
8.4 |
15.0 |
35.0 |
27.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |
| RF 6-10 |
10.5 |
15.0 |
35.0 |
27.5 |
14.0 |
3.4 |
Yellow |
12-10 |
4-6 |
300 |

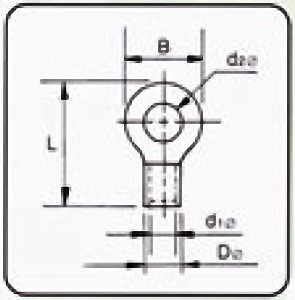

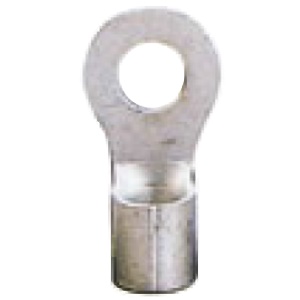

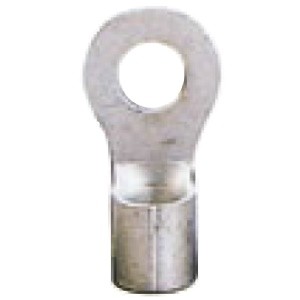

หางปลาหัวกลม แบบย้ำ-เปลือย
NON-INSULATED RING TERMINALS
R TYPE
| Item No. |
d2Ø |
B |
L |
DØ |
d1Ø |
AWG |
DIN mm2 |
QTY in box |
| R 1.5-3 |
3.7 |
8.0 |
15.5 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| R 1.5-4 |
4.3 |
8.0 |
15.5 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| R 1.5-5 |
5.3 |
8.0 |
15.5 |
3.3 |
1.7 |
22-16 |
0.5-1.5 |
1,000 |
| R 2.5-3 |
3.7 |
8.5 |
16.5 |
3.9 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| R 2.5-4 |
4.3 |
8.5 |
16.5 |
3.9 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| R 2.5-5 |
5.3 |
9.5 |
17.0 |
3.9 |
2.3 |
16-14 |
1.5-2.5 |
1,000 |
| R 2.5-6 |
6.4 |
12.0 |
21.5 |
3.9 |
2.3 |
16-14 |
1.5-2.5 |
800 |
| R 4-4 |
4.3 |
8.8 |
17.7 |
5.0 |
3.0 |
14-12 |
2.5-4 |
500 |
| R 4-5 |
5.3 |
8.8 |
17.7 |
5.0 |
3.0 |
14-12 |
2.5-4 |
500 |
| R 4-6 |
6.4 |
12.0 |
21.4 |
5.0 |
3.0 |
14-12 |
2.5-4 |
500 |
| R 6-4 |
4.3 |
9.5 |
19.5 |
5.4 |
3.4 |
12-10 |
4-6 |
500 |
| R 6-5 |
5.3 |
9.5 |
19.5 |
5.4 |
3.4 |
12-10 |
4-6 |
500 |
| R 6-6 |
6.4 |
12.0 |
23.0 |
5.4 |
3.4 |
12-10 |
4-6 |
400 |
| R 6-8 |
8.4 |
15.0 |
27.5 |
5.4 |
3.4 |
12-10 |
4-6 |
400 |
| R 6-10 |
10.5 |
15.0 |
27.5 |
5.4 |
3.4 |
12-10 |
4-6 |
400 |

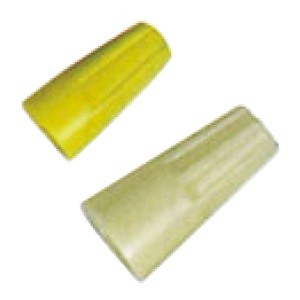

วายนัท พลาสติก
WIRE NUT-PLASTIC
| Item No. |
Color |
AWG |
DIN mm2 |
QTY in box |
| #11P |
Yellow |
22-16 |
0.5-1.5 |
500 |
| #22P |
Ivory |
22-14 |
0.5-2.5 |
300 |
| #33P |
Ivory |
22-14 |
0.5-2.5 |
200 |
