หมวดหมู่สินค้า: Electronic Parts

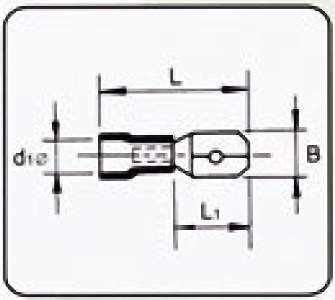

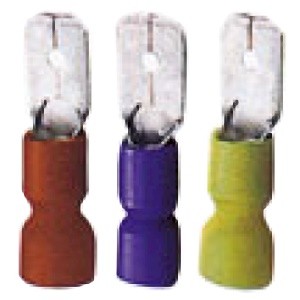

หัวเสียบตัวผู้ แบน-หุ้ม
INSULATED MALE DISCONNECTORS
V-B TYPE
| Item No. |
TAB SIZE |
B |
L |
L1 |
d1Ø |
Color |
AWG |
DIN mm2 |
QTY in box |
| V 1.5-7B |
0.250×0.032
6.35×0.8 mm |
6.3 |
21.0 |
11.0 |
3.3 |
Red |
22-16 |
0.5-1.5 |
800 |
| V 2.5-7B |
6.3 |
21.0 |
11.0 |
4.0 |
Blue |
16-14 |
1.5-2.5 |
800 |
| V 6-7B |
6.3 |
23.0 |
11.0 |
5.5 |
Yellow |
12-10 |
4-6 |
400 |

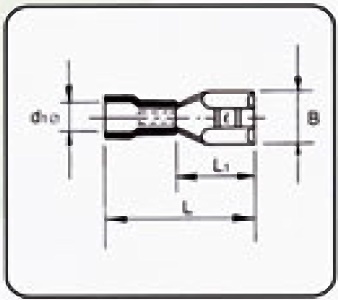

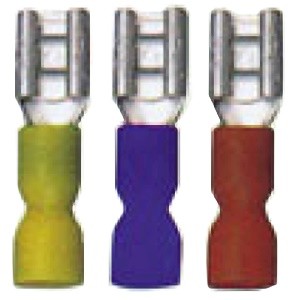

หัวเสียบตัวเมีย แบน-หุ้ม
INSULATED FEMALE DISCONNECTORS
V-A TYPE
| Item No. |
TAB SIZE |
B |
L |
L1 |
d1Ø |
Color |
AWG |
DIN mm2 |
QTY in box |
| V 1.5-7A |
0.250×0.032
6.35×0.8 mm |
6.5 |
21.0 |
11.0 |
3.3 |
Red |
22-16 |
0.5-1.5 |
800 |
| V 2.5-7A |
6.5 |
21.0 |
11.0 |
4.0 |
Blue |
16-14 |
1.5-2.5 |
800 |
| V 6-7A |
6.5 |
23.0 |
11.0 |
5.5 |
Yellow |
12-10 |
4-6 |
400 |

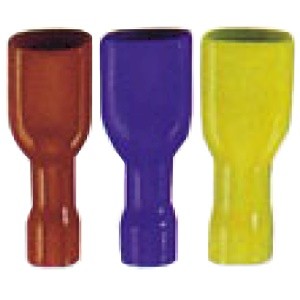

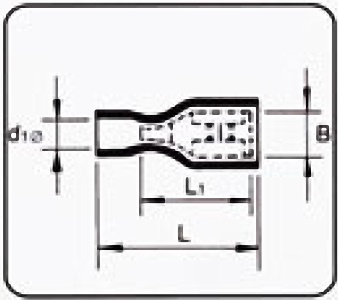

หัวเสียบตัวเมีย แบน-หุ้มเต็ม
FULLY INSULATED FEMALE DISCONNECTORS
PV-A TYPE
| Item No. |
TAB SIZE |
B |
L |
L1 |
d1Ø |
Color |
AWG |
DIN mm2 |
QTY in box |
| PV 1.5-7A |
0.250×0.032
6.35×0.8 mm |
6.5 |
23.0 |
16.5 |
3.3 |
Red |
22-16 |
0.5-1.5 |
400 |
| PV 2.5-7A |
6.5 |
23.0 |
16.5 |
4.0 |
Blue |
16-14 |
1.5-2.5 |
400 |
| PV 6-7A |
6.5 |
23.0 |
16.5 |
5.5 |
Yellow |
12-10 |
4-6 |
300 |

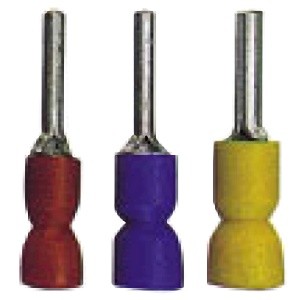

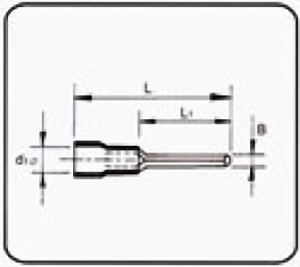

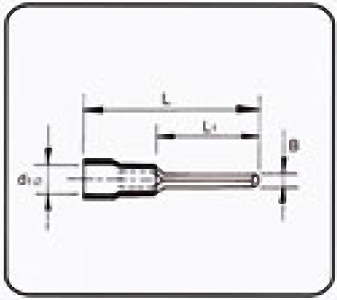

หัวเสียบ แบบก้านไม้ขีด
PIN INSULATED TERMINALS
PIN TYPE
| Item No. |
B |
L |
L1 |
Color |
AWG |
DIN mm2 |
QTY in box |
| PIN 1.5 AF |
1.9 |
22.0 |
12.5 |
Red |
22-16 |
0.5-1.5 |
800 |
| PIN 2.5 AF |
1.9 |
22.0 |
12.5 |
Blue |
16-14 |
1.5-2.5 |
800 |
| PIN 6 AF |
2.7 |
27.5 |
13.5 |
Yellow |
12-10 |
4-6 |
400 |

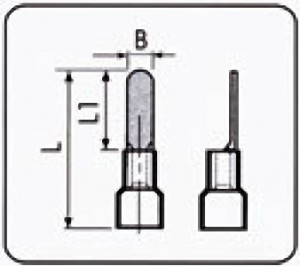

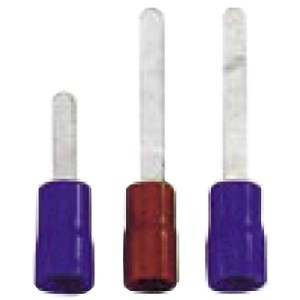

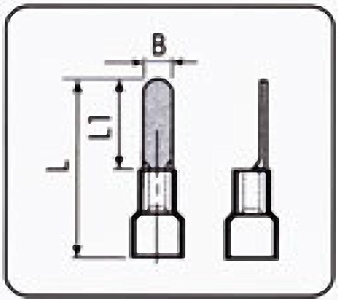

หัวเสียบแบนแบบก้านไม้ขีด
FLAT BLADE TERMINALS
PIN FB TYPE
| Item No. |
B |
L |
L1 |
Color |
AWG |
DIN mm2 |
QTY in box |
| PIN 110 FB |
2.3 |
20.0 |
10.0 |
Red |
22-16 |
0.5-1.5 |
800 |
| PIN 210 FB |
2.3 |
20.0 |
10.0 |
Blue |
16-14 |
1.5-2.5 |
800 |
| PIN 510 FB |
2.8 |
23.0 |
10.0 |
Yellow |
12-10 |
4-6 |
400 |
