ข้อต่อย้ำปลายสาย CE

ข้อต่อย้ำปลายสาย CE

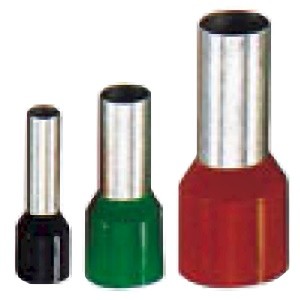

CORD-END SLEEVES

Core-End_Sleeves

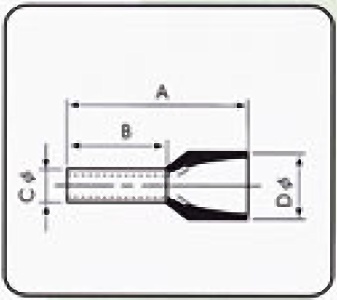

Core-End_Sleeves-D
Item No. Conductor sqmm. A B CØ DØ   Color AWG DIN mm2 QTY in box
(T) Franch (W) Greman (D) DIN
CE 0.25-6 0.25 10 6 1.05 2.5 violet l.blue 30 0.25
CE 0.34-6 0.34 10 6 1.10 2.5 pink turkis 28 0.34
CE 0.5-8 0.5 14 8 1.30 3.2 white orange white 22 0.5 1,000
CE 0.75-8 0.75 14 8 1.50 3.4 m.blue white grey 20 0.75 1,000
CE 1.0-8 1 14 8 1.70 3.6 red yellow red 18 1 1,000
CE 1.5-8 1.5 14 8 2.00 4.1 black d.red black 16 1.5 1,000
CE 2.5-8 2.5 14 8 2.50 4.8 grey blue blue 14 2.5 1,000
CE 4-10 4 17 10 3.20 5.5 orance grey grey 12 4 500
CE 6-12 6 20 12 3.90 7.0 green black yellow 10 6 500
CE 10-12 10 22 12 4.90 8.4 brown ivory red 8 10 300
CE 16-12 16 24 12 6.20 9.6 ivory green blue 6 16 200
CE 25-16 25 28 16 7.70 12.0 black brown yellow 4 25 100
CE 35-16 35 30 16 8.70 13.5 red beire red 2 35 100
CE 35-25 35 39 25 8.70 13.5 red beire red 2 35 50
CE 50-25 50 40 25 10.9 16.0 blue olive blue 1/0 50 50
